Von Duprin RXQEL9847NL-OP 3 643E Grade 1 CVR Exit Device 643E

Von Duprin RXQEL9847NL-OP 3 643E Grade 1 CVR Exit Device 643E offers a robust solution for securing both single and double metal doors. This Grade 1 concealed vertical rod exit bar is designed to provide reliable panic exit functionality, meeting UL standards for safety. With a wide stile pushpad and a length of 36 inches, it accommodates door heights ranging from 80 to 100 inches. The device features a nightlatch function and motorized latch retraction, enhancing ease of use while ensuring security. A request to exit switch adds convenience for high-traffic areas. The RXQEL9847NL-OP is field-reversible and less dogging, allowing for flexible installation options based on your specific needs. Constructed to ANSI A156.3 – 2008 Grade 1 standards, this exit device includes adjustable vertical rods, making it suitable for a variety of door sizes. The aged bronze finish adds a touch of sophistication to your entryway. Installation is straightforward with included fasteners for metal doors measuring 1 3/4" to 2 1/4" thick. Whether for commercial or institutional settings, the Von Duprin RXQEL9847NL-OP is a dependable choice for ensuring safe and efficient exits while maintaining the aesthetic integrity of your building.

Grade 1 CVR Exit Device 643E

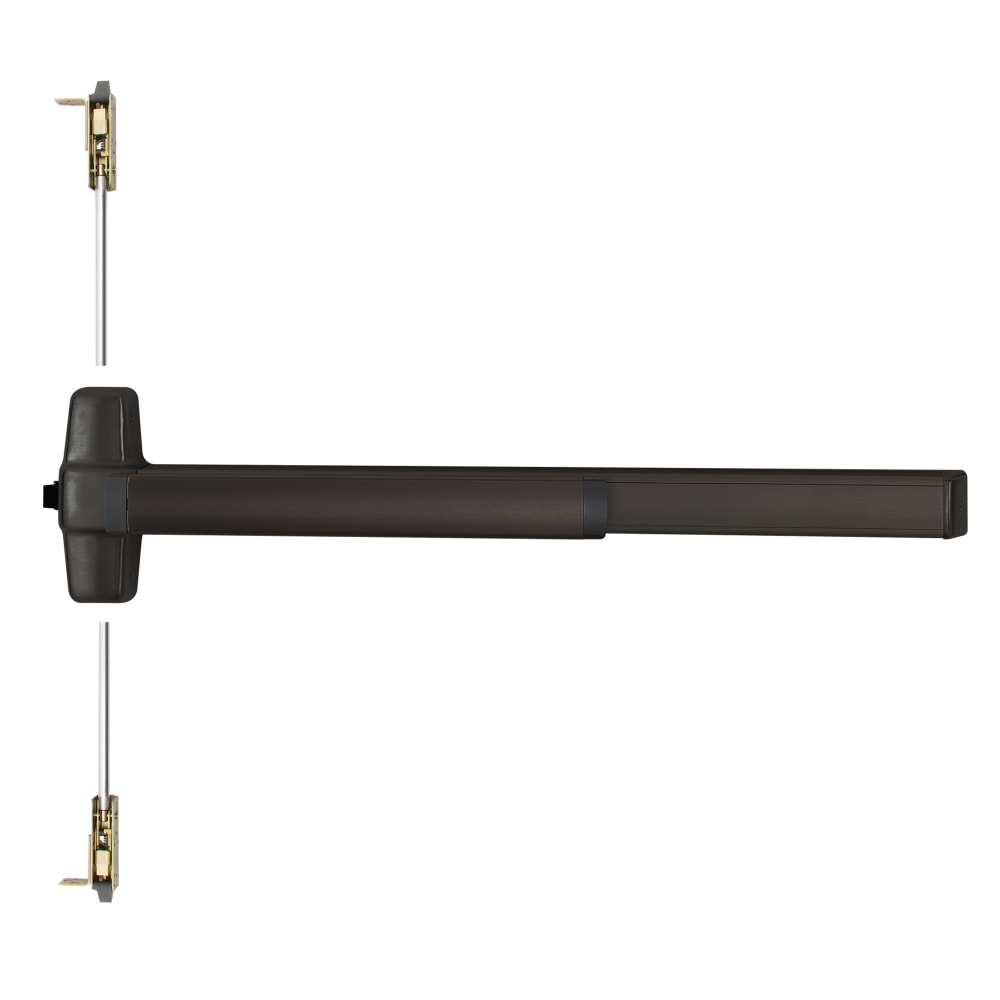

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Device, 80" to 100" Door Height, Nightlatch Function, Motorized Latch Retraction, Request to Exit Switch, Less Dogging, Aged Bronze Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

The 9847 device has a smooth mechanism case.

The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm) recommended
• Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
