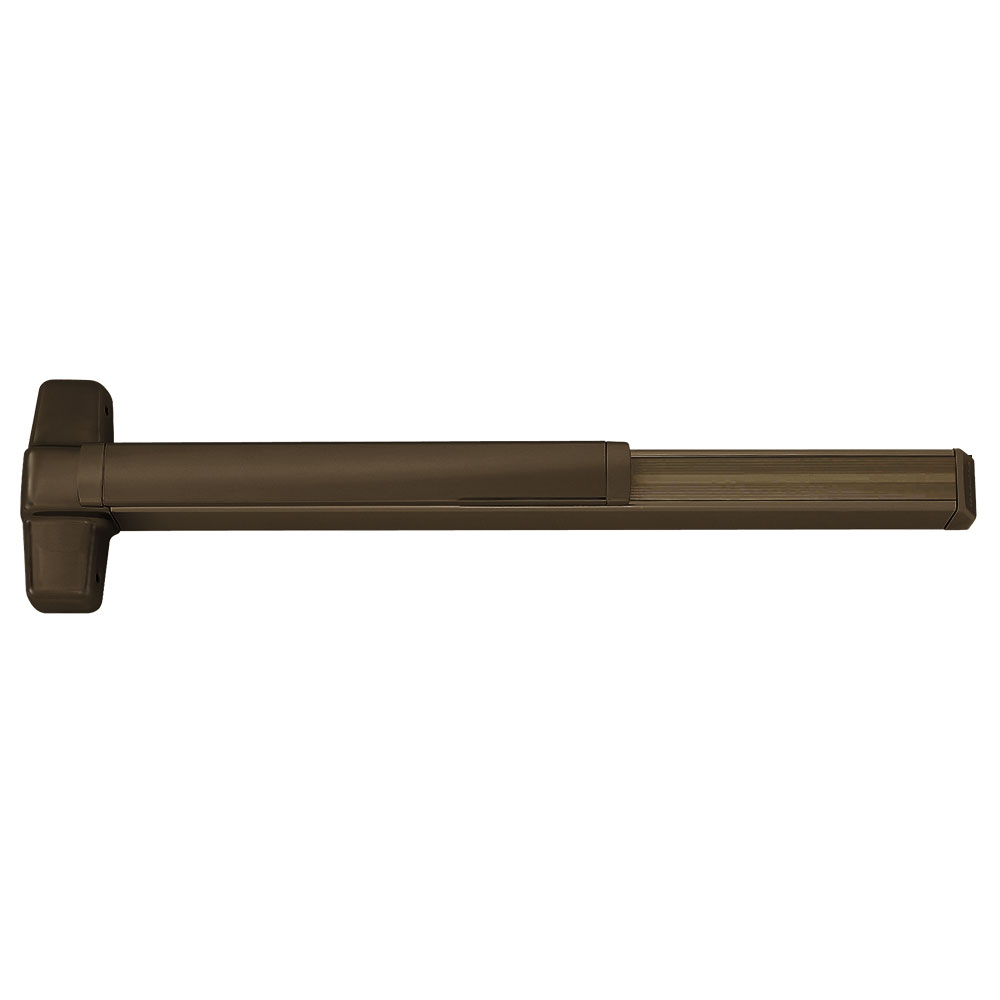

Von Duprin RXQEL9949EO 3 313 LBL Grade 1 CVC Exit Device 710 is a high-quality concealed vertical cable exit bar designed for commercial applications. With a 36" device length, it is suitable for doors with heights ranging from 82" to 96". This exit device features motorized latch retraction, allowing for seamless and efficient egress in emergency situations. Built to meet Grade 1 standards, this unit is UL listed for panic exit hardware, ensuring reliability and safety. The device is designed for use on single or double metal doors and accommodates door widths from 28" to 36" with a thickness of 1-3/4" to 2-1/4". Its dark bronze anodized aluminum finish not only enhances durability but also adds a touch of elegance to your door hardware. The RXQEL9949EO model supports a request to exit switch and is field reversible, allowing for flexible installation. Notably, it is a less dogging option, which simplifies operation while maintaining security. This exit device is an excellent choice for professionals seeking a robust and efficient solution for high-traffic areas, ensuring both safety and accessibility in commercial environments.
Grade 1 CVC Exit Device 710
Grade 1 Concealed Vertical Cable Exit Bar, 36" Device, 82" to 96" Door Height, Exit Only, Less Bottom Latch, Motorized Latch Retraction, Request to Exit Switch, Less Dogging, Dark Bronze Anodized Aluminum Finish, Field Reversible
9849/9949 Concealed vertical cable device for use on single or double metal doors, UL listed for panic exit hardware.
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36"
Device Type: Concealed Vertical Cable
Dogging Options: Less Dogging
Door Height: 82" to 96"
Door Material: Metal
Door Thickness: 1-3/4" - 2-1/4"
Door Width: 28" to 36"
Electric Options: Motorized Latch Retraction
Finish: 313
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Latch
Minimum Stile Size: 4-1/4"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 33"
Product Width: 3.75"
Restrictions: None
Reversible: Yes
Series: 9949 Series Concealed Cable Exit Devices
Strike Bottom: 349
Subtype: Motorized Exit Devices
Switch Type: Request to Exit
Top Strike: 249
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
